ZC Series High Speed of CNC Wire Cutting EDM Machine

FOB Reference Price:Get Latest Price
$9,100.00 - $23,600.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
DK7732ZC DK7740ZC DK7763ZC DK7780ZC D77100ZC DK77120ZC
Lead Time:
Quantity(Sets) 1 - 3 >3
Est. Time(days) 25 Negotiable
Report Suspicious Activity
Overview
Quick Details
CNC or Not:
CNC
Condition:
New
Machine Type:
Wire EDM
Place of Origin:
Jiangsu, China
Brand Name:
TOPSCNC
Voltage:
3N-380V/50Hz
Dimension(L*W*H):
2060*1760*2000 mm
Certification:
ISO9001:2008 , CE , CQC ,TUV
Weight (KG):
2600
Key Selling Points:
Sustainable
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Applicable Industries:
Machinery Repair Shops, Manufacturing Plant
Local Service Location:
Turkey, Viet Nam, Indonesia, Pakistan, Thailand, Japan
Showroom Location:
Turkey, Viet Nam, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Thailand, Bangladesh, Japan, Malaysia
After-sales Service Provided:
Engineers available to service machinery overseas
Key word:
Wire Cutting EDM Machine
Table Size:
640*1020 mm
Table Travel (X/Y):
500*630 mm
Max.workpiece weight:
1600 kg
Max.workpiece thickness:
400 mm
Machining precision:
0.01mm
Surface Roughness:
Ra<1.0 um
Max.working current:
10A
Working Liquid:
JA-1
Warranty:
1 Year
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
The package of ZC Series High Speed of CNC Wire Cutting EDM Machine:
To be packed in wooden cases, suitable for export.
Port
Shanghai
Lead Time :
Quantity(Sets) 1 - 3 >3
Est. Time(days) 25 To be negotiated
Product Description

ZC Series High Speed of CNC Wire Cutting EDM  Machine

Technique parameters
Unit
DK7732
ZC
DK7740
ZC
DK7750
ZC
DK7763
ZC
DK7780
ZC
DK77100ZC
Table size  (WxD)
mm
440×680
540×810
640×1020
750×1190
950×1440
1140×1640
Table travel (XxY)
mm
320×400
400×500
500×630
630×800
800×1000
1000×1200
Table travel (UxV)
mm
320×320
370×370
Max. workpiece weight
kg
600
1000
1600
2400
3200
3800
Thickness of workpiece
mm
400
600
Max.taper angle

±30°/100
Z-axis control

electric control
Z-axis guideway

V-shape
Diameter of cutting wire
mm
φ0.15~φ0.20(recommend φ0.18)
Feeding speed
m/sec
1~11.4m/sec adjustable
Precision
mm
≤0.01
Machining speed
mm²/min
>200
Surface roughness
μm
Ra≤1.0
Motor type

X、Y、U、V stepper motor
Control axis

4 axis simultaneous
Min. control pace
mm
0.001
Power supply

3N-380V/50Hz
Max. working current
A
10
Power consumption
Kw
1
Working liquid

JA-1
Water tank
L
55
Filtering mode

filter screen
Controller

DQE-DS-01/02/03
Machine weight
kg
1700
1900
2600
3200
5800
7000
Machine dimensions
mm
1765×1170×1950
1850×1380×1950
2060×1760×2000
2250×2250×2000
2900×2800×2500
3300×3270×2500
Our Certifications
Our Company

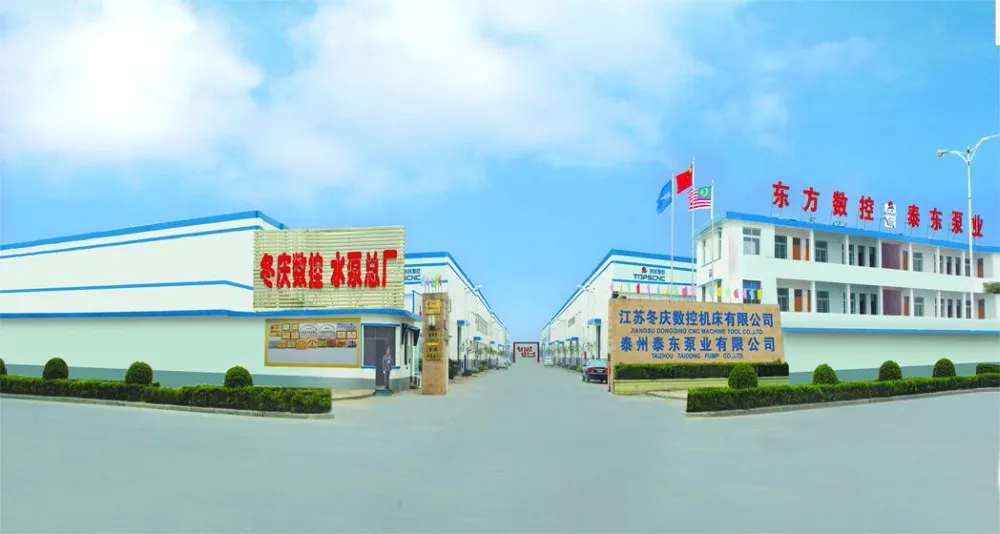

Factory

Our Factory

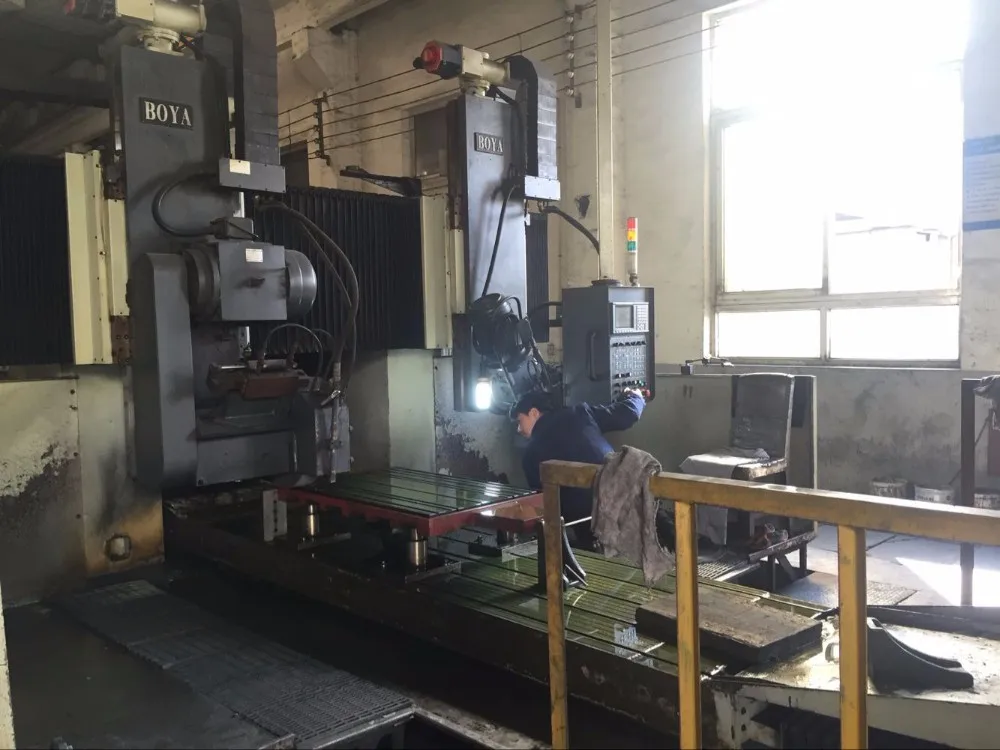

Workshop

Our Workshop

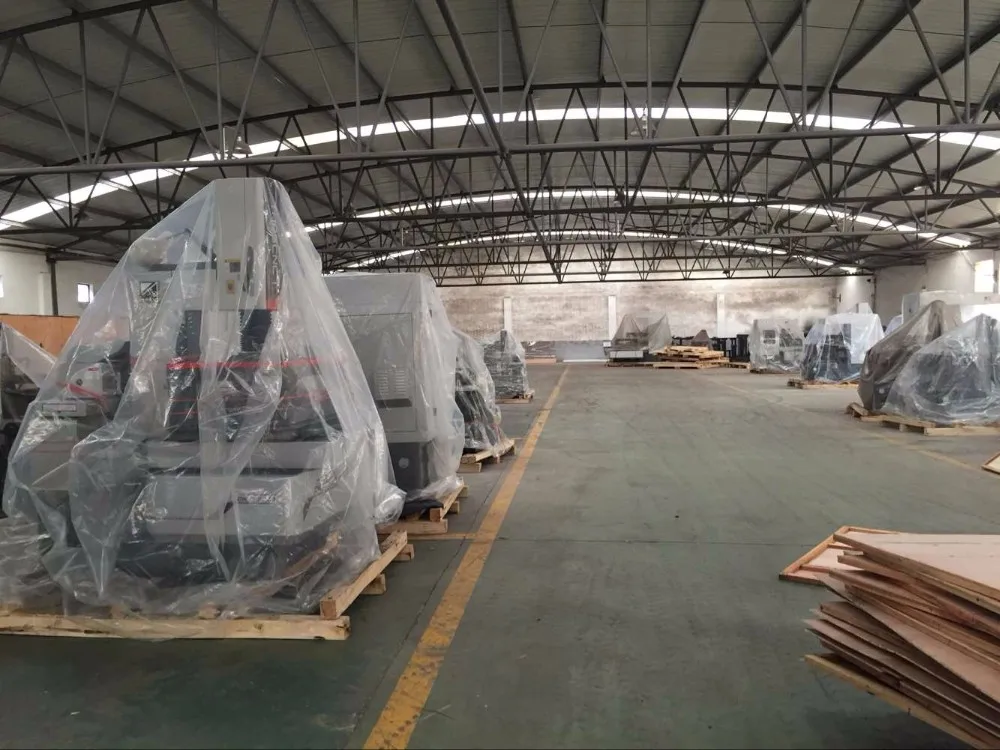

Warehouse

Our Warehouse

Team

Our Team

Founded in 1958 and developed more than half a century, Jiangsu Dongqing CNC Machine Tool CO. Ltd., has now became a forge ahead modern enterprise for production of CNC machine.


The R&D, production and marketing are the main component of the company. As shown on the website, the main product of the company covers five series, CNC milling machine & vertical machining center, CNC engraving machine, CNC wire cut edm, Die sinking edm and Micro hole drilling edm.


The company has always engaged in improving the quality, function and performance of CNC machine in the past several years. It has successfully passed identification of ISO, CE, SGS, TUV & Bureau. “Innovation, development and win-win situation” makes TOPSCNS enjoy high reputation in this line.


TOPSCNC people wish to share success with you in the future!

Our Service

1) Quality & Service : We take care of the product quality in order to provide good service to our customers.

2) Price : In order to serve more better to our customer we are always finding the way to reduce the price.

3 )Warranty: One year after shipment, consumables are not included.

Packing & Delivery

Packing Details  :To be packed in wooden cases, suitable for export.

Delivery Details : 28-35 days

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 28-35 days .

Q: Do you provide samples ? is it free or extra ?

A: Nos, we could not offer the sample .

Q: What is your terms of payment ?

A: Term payment: T/T30% with the order, the rest 70% of total amount T/T before shipment.


If you have another question, pls feel free to contact us as below:
