DK7732ZB china Stepper Motor cnc machine cutting tools

  • >=1 Sets
    $7,600.00
Model Number:
DK7732ZB
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 25 Negotiable
Report Suspicious Activity
Overview
Quick Details
CNC or Not:
CNC
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
TOPSCNC
Voltage:
380V/50Hz
Dimension(L*W*H):
1765*1170*2150
Certification:
CE ISO9001:2008 TUV
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas, Field maintenance and repair service
Product name:
DK7732ZB china Stepper Motor cnc machine cutting tools
Machine TYPE:
WEdm Machine
Work Table Size:
440*680
Machining Precision:
0.015mm
Cutting efficiency:
200mm2/min
Key word:
cnc machine cutting tools
Max.workpiece weight:
600 kg
Controlling Mode:
stepper motor drive
Surface Roughness:
Ra<2.5um
Power:
1kW
Weight:
1500kg
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
DK7732ZB china Stepper Motor cnc machine cutting tools : packed in wooden cases, suitable for export
Port
Shanghai
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 25 To be negotiated
Video Description
Product Description

DK7732ZB china Stepper Motor cnc machine cutting tools

Technique parameters
unit
DK7732ZB
Table size  (WxD)
mm
440×680
Table travel (XxY)
mm
320×400
Table travel (UxV)
mm
140x140

Max. workpiece weight
kg
600
Thickness of workpiece
mm
350
Max.taper angle
±15°/80mm
Z-axis control
electric control
Z-axis guideway
V-shape
Diameter of cutting wire
mm
φ0.15~φ0.20mm(recommend φ0.18mm)
Feeding speed
m/sec
1~11.4m/sec adjustable
Precision
mm
≤0.015
Machining speed
mm²/min
>200
Surface roughness
μm
Ra≤2.5
Motor type
X,Y,U,V stepper motor
Control axis
4 axis simultaneous
Min. control pace
mm
0.001
Power supply
3N-380V/50Hz
Max. working current
A
10
Power consumption
Kw
1
Working liquid
JA-1
Water tank
L
55
Filtering mode
filter screen
Controller
DQE-DS-01/02/03
Machine weight
kg
1500
Machine dimensions
mm
1765×1170×2150
Certifications

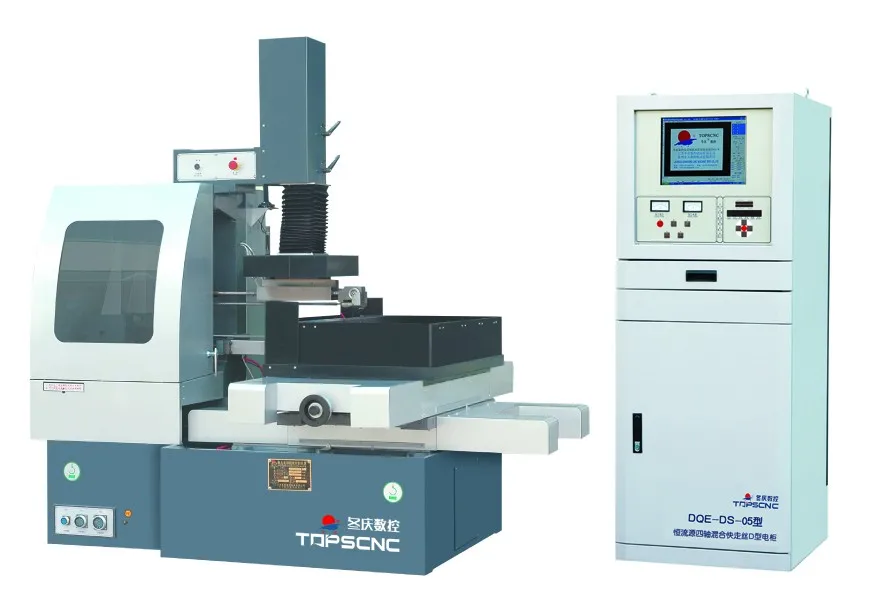

Detailed Images
Our Company

Founded in 1958 and developed more than half a century, Jiangsu Dongqing CNC Machine Tool CO. Ltd., has now became a forge ahead modern enterprise for production of CNC machine.

The R&D, production and marketing are the main component of the company. As shown on the website, the main product of the company covers five series, CNC milling machine & vertical machining center, CNC engraving machine, CNC wire cut edm, Die sinking edm and Micro hole drilling edm.

The company has always engaged in improving the quality, function and performance of CNC machine in the past several years. It has successfully passed identification of ISO, CE, SGS, TUV & Bureau. "Innovation, development and win-win situation" makes TOPSCNS enjoy high reputation in this line.

It always keep a great ideal in mind, aims to create century brand and strive for top grade. The confidence comes from advanced product, strict quality control system and sustained technical innovation, comes from after-sales service all over the country and global market.

TOPSCNC people wish to share success with you in the future!

Our Service

1) Quality & Service : We take care of the product quality in order to provide good service to our customers.

2) Price : In order to serve more better to our customer we are always finding the way to reduce the price.

3 )Warranty: One year after shipment,consumables are not included.

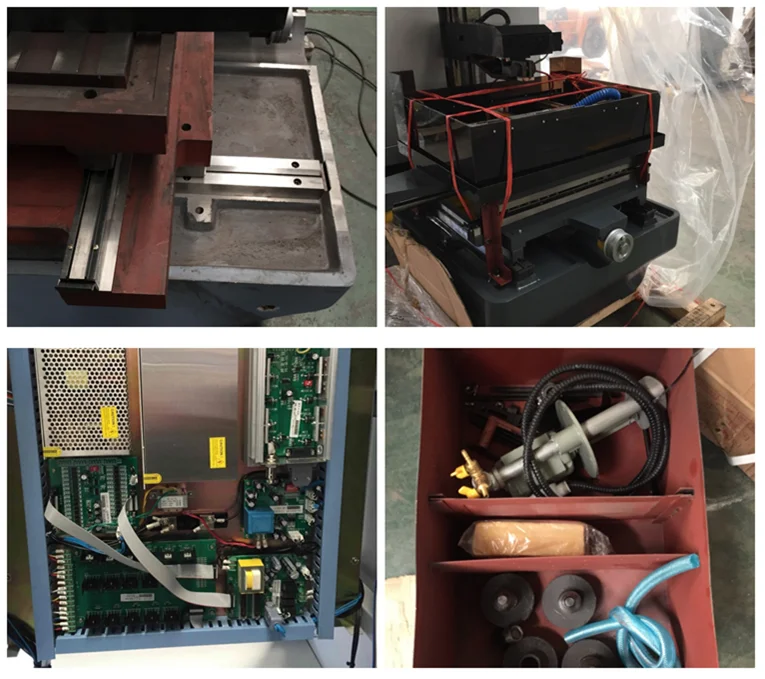

Packing & Delivery
Customer photo
FAQ

1.Q: Are you trading company or manufacturer ?
A: We are factory.

2.Q. What's your MOQ ?
A:Our MOQ is one set for each machine.

3.Q. Could your engineers go to our factory to install the machine and train our workers?
A:Yes, our engineers could go to your factory and assist you.

4.Q:What is your term payment ?
A:L/C or T/T before shipment.

5.Q:What is your warranty?
A:One year after shipment ,consumbles are not included.

6.Q. Could I visit your factory ?
A:Yes, sure, welcome.
