ZC Series High Speed CNC Wire Cut EDM Machine

FOB Reference Price:Get Latest Price
$9,100.00 - $23,600.00 / Set | 1 Set/Sets (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
CNC or Not:
CNC
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
TOPSCNC
Model Number:
DK7732ZC
Voltage:
380V/50Hz
Dimension(L*W*H):
1765*1170*1950 mm
Certification:
ISO9001:2008 , CE , CQC ,TUV
Key word:
High Speed CNC Wire Cut EDM Machine
Table Size:
440*680 mm
Table Travel (X/Y):
320*400 mm
Max.workpiece weight:
600 kg
Max.workpiece thickness:
400 mm
Machining precision:
0.01mm
Surface Roughness:
Ra<1.0 um
Max.working current:
10A
Working Liquid:
JA-1
Power Input:
3N-50Hz /380V
After-sales Service Provided:
Engineers available to service machinery overseas
Power:
2.3kw
Weight:
1700kg
Warranty:
1 Year
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
The package of ZC Series High Speed CNC Wire Cut EDM Machine:
To be packed in wooden cases, suitable for export.
Port
Shanghai
Lead Time :
Shipped in 35 days after payment
Product Description
High Speed CNC Wire Cut EDM Machine:
1.stepper motor drive
2.High precision
3.Large taper angle(±30°)
4.CE ISO TUV certification
5.In stock
Detail Images as following :
Technique parameters as following:
Technique parameters
Unit
DK7732
ZC
DK7740
ZC
DK7750
ZC
DK7763
ZC
DK7780
ZC
DK77100ZC
Table size  (WxD)
mm
440×680
540×810
640×1020
750×1190
950×1440
1140×1640
Table travel (XxY)
mm
320×400
400×500
500×630
630×800
800×1000
1000×1200
Table travel (UxV)
mm
320×320
370×370
Max. workpiece weight
kg
600
1000
1600
2400
3200
3800
Thickness of workpiece
mm
400
600
Max.taper angle

±30°/100
Z-axis control

electric control
Z-axis guideway

V-shape
Diameter of cutting wire
mm
φ0.15~φ0.20(recommend φ0.18)
Feeding speed
m/sec
1~11.4m/sec adjustable
Precision
mm
≤0.015
Machining speed
mm²/min
>200
Surface roughness
μm
Ra≤2.5
Motor type

X、Y、U、V stepper motor
Control axis

4 axis simultaneous
Min. control pace
mm
0.001
Power supply

3N-380V/50Hz
Max. working current
A
10
Power consumption
Kw
1
Working liquid

JA-1
Water tank
L
55
Filtering mode

filter screen
Controller

DQE-DS-01/02/03
Machine weight
kg
1700
1900
2600
3200
5800
7000
Machine dimensions
mm
1765×1170×1950
1850×1380×1950
2060×1760×2000
2250×2250×2000
2900×2800×2500
3300×3270×2500
Controller Specifications:
1. LCD Display
2.Controller DK7750ZC - AC Stepper control
3.Stepper control system (Stepper Drivers and Motors)
4.Industrial PC
5..Axis Control 4 - axes (X, Y, U, V-stepper motor Drives)
6. Double direction stepper wire tension (Auto wire tension)
7.Interpolation: Linear and Circular
8.Programming Incremental
9.Data Input / Output System: USB/LAN Port, recommend USB, Regular Keyboard and Mouse; Can read Auto CAD .dxf format
10.Graphic Display : Graphic display of part showing wire position
11.Processing and Data Entry: Dual Screen, New programs can be entered while cutting previous program
12.Auto Stop: Auto Shut-Down at the end of program
13.Dielectric Fluid : Soft water (D.M Water) + Gel

Standard Features:
1.Special arrangement for Aluminum cutting
2.ZC Series system software controller works on Windows XP/7 operating system platform
3.Inbuilt database for cutting different materials.
4.Inbuilt NC/Auto CAD software to generate profiles
5..Coolant filtering system - Fine stainless steel wire mesh for coolant filter
6.No need to change wire guide for different diameters
7.Two axis (X and Y) DRO
8.4-Axes synthesizer to cut different profiles at top and bottom (±30°/100)
9.Auto center find, auto edge finds, auto Stop at wire breakage or end of the job
Cutting samples
Our Company

Factory

Our Factory

Team

Our Team

Founded in 1958 and developed more than half a century, Jiangsu Dongqing CNC Machine Tool CO. Ltd., has now became a forge ahead modern enterprise for production of CNC machine.
The R&D, production and marketing are the main component of the company. As shown on the website, the main product of the company covers five series, CNC milling machine & vertical machining center, CNC engraving machine, CNC wire cut edm, Die sinking edm and Micro hole drilling edm.
The company has always engaged in improving the quality, function and performance of CNC machine in the past several years. It has successfully passed identification of ISO, CE, SGS, TUV & Bureau. “Innovation, development and win-win situation” makes TOPSCNS enjoy high reputation in this line.
TOPSCNC people wish to share success with you in the future!

TOPSCNC Customer
The Czech Fair
Customers visit our factory (Nov.2016)
Our Service
1) Quality & Service : We take care of the product quality in order to provide good service to our customers.
2) Price : In order to serve more better to our customer we are always finding the way to reduce the price.
3 )Warranty: One year after shipment, consumables are not included.
Packing & Delivery:

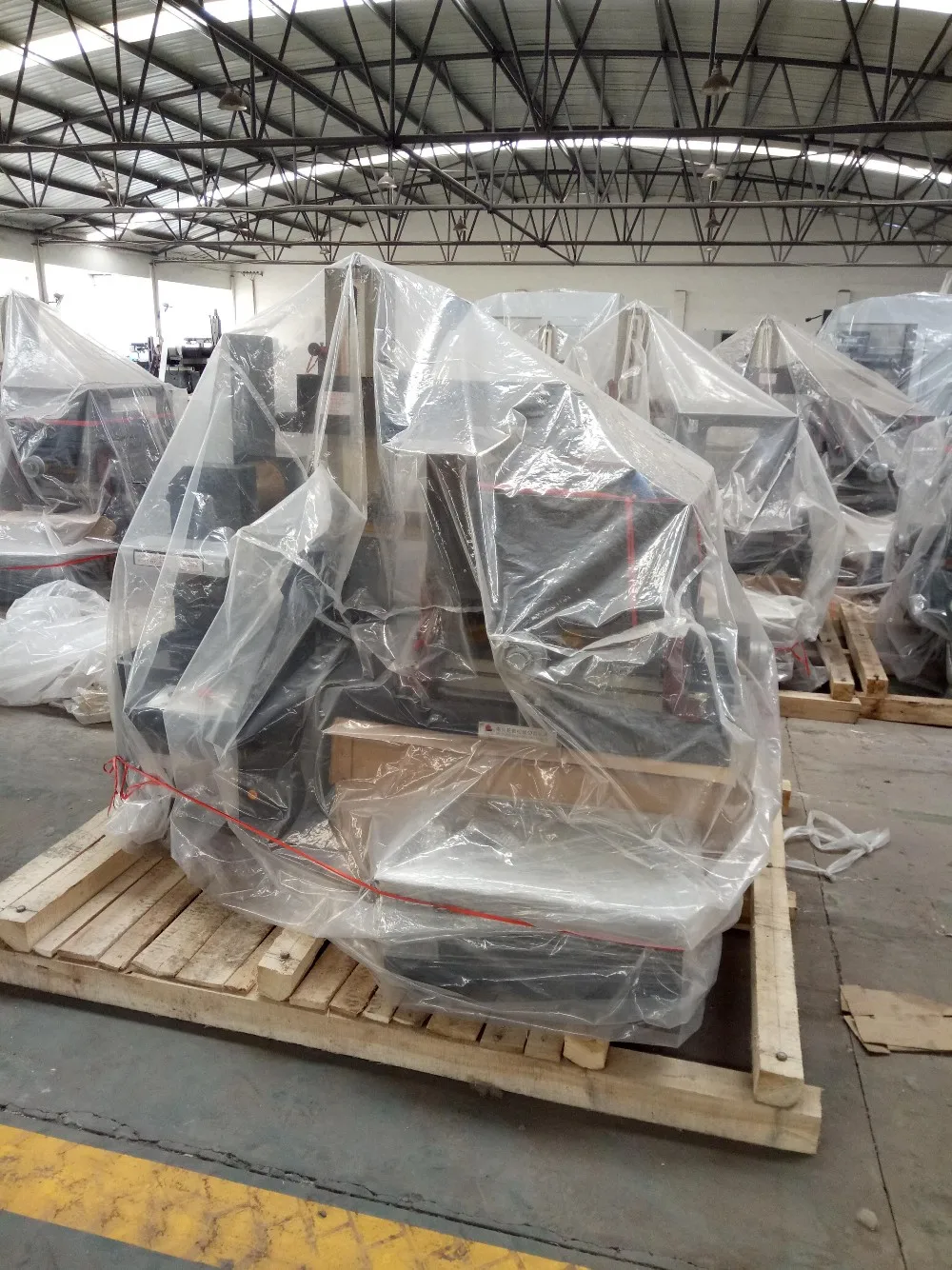

Packing Details : To be packed in wooden cases, suitable for export.
Delivery Details : 25-30 days .
MOQ: 1 set
Port: Shanghai or any China port
Payment Method : L/C or T/T
FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Normally our delivery time is 28~35 days, but if we have the goods you want in our stock, then the delivery time will be in about three weeks or less.

Q: Do you provide samples ? is it free or extra ?

A: Nos, we could not offer the sample .

Q: What is your terms of payment ?

A: Term payment: T/T30% with the order, the rest 70% of total amount T/T before shipment.
