Environmental protection cover of cnc wire cut edm machine

FOB Reference Price:Get Latest Price
$6,700.00 - $13,000.00 / Set | 1 Set/Sets (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
CNC or Not:
CNC
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
TOPSCNC
Model Number:
DK7732ZF
Voltage:
380V/50Hz
Dimension(L*W*H):
1550X1170X1900mm
Certification:
ISO9001:2008 CQC TUV CE
Table travel (XxY):
320X400
Max. workpiece weight:
600kg
Thickness of workpiece:
400mm
Max.taper angle:
±6°/80mm
Precision:
≤0.015mm
Surface roughness:
Ra≤2.5μm
Motor type:
X,Y,U,V stepper motor
Power consumption:
0.56kw
Water tank:
55L
Machine weight:
1480kg
Weight:
1480kg
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
1 Year
Power:
0.56kw
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
Environmental protection cover of cnc wire cut edm machine to be packed in wooden cases,suitable for export.
Port
SHANGHAI
Lead Time :
Shipped in 35 days after payment
Product Description
Technique parameters
Unit
DK7725ZF
DK7732ZF
DK7740ZF
DK7750ZF
DK7763ZF
Table size  (WxD)
mm
400×580
440×680
540×760
640×1020
750×1140
Table travel (XxY)
mm
250×320
320×400
400×500
500×630
630×800
Table travel (UxV)
mm
70×70
Max. workpiece weight
kg
400
600
1000
1600
2400
Thickness of workpiece
mm
400
450
550
Max.taper angle
±6°/80mm
Z-axis control
electronic control
Z-axis guideway
slide guides
Diameter of cutting wire
mm
φ0.15~φ0.20mm(recommend φ0.18mm)
Feeding speed
m/sec
1~11.4m/sec adjustable
Precision
mm
≤0.015
Machining speed
mm²/min
>220
Surface roughness
μm
Ra≤2.5
Motor type
X、Y、U、V stepper motor
Control axis
4 axis simultaneous
Min. control pace
mm
0.001
Power supply
3N-380V/50Hz
Max. working current
A
12
Power consumption
Kw
0.56
Working liquid
JA-1
Water tank
L
55
Filtering mode
filter screen
Controller
DQE-DS-01/02/03
Machine weight
kg
1250
1480
1730
2500
2900
Machine dimensions
mm
1420×1040×1900
1550×1170×1900
1800×1380×1900
2060×1760×2050
2250×2250×2150
Certifications
Company Profile

Jiangsu Dongqing CNC Machine Tool Co. Ltd is founded in 1958 and developed more than half a century, Jiangsu Dongqing CNC Machine Tool CO. Ltd., has now became a forge ahead modern enterprise for production of CNC machine.
The R&D, production and marketing are the main component of the company. As shown on the website, the main product of the company covers five series, CNC milling machine & vertical machining center, CNC engraving machine, CNC wire cut edm, Die sinking edm and Micro hole drilling edm.
The company has always engaged in improving the quality, function and performance of CNC machine in the past several years. It has successfully passed identification of ISO, CE, SGS, TUV & Bureau. “Innovation, development and win-win situation” makes TOPSCNS enjoy high reputation in this line.
It always keep a great ideal in mind, aims to create century brand and strive for top grade. The confidence comes from advanced product, strict quality control system and sustained technical innovation, comes from after-sales service all over the country and global market.
TOPSCNC people wish to share success with you in the future!

                                                               Our Service

                                                                                   FAQ


1. What’s your MOQ ?
     At least one set.


2. Could we use our own brand on your machine ?
     Of course you can.Our company supports OEM.

3. Could your engineers go to our factory to install the machine and train our workers?
     Sure.Our engineers can go to your country to assit you installing.

4. Whats your fast delivery time ?
      About 25~35 days after receipt of deposit.

5. Could I visit your factory ?
     It's our honor.Welcome.

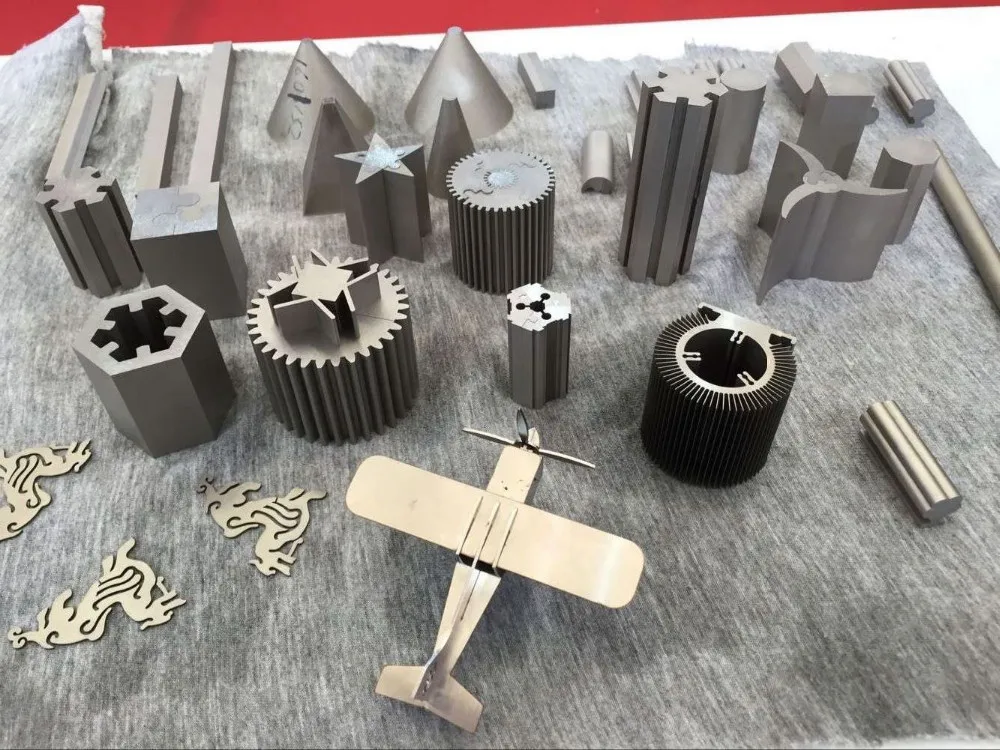

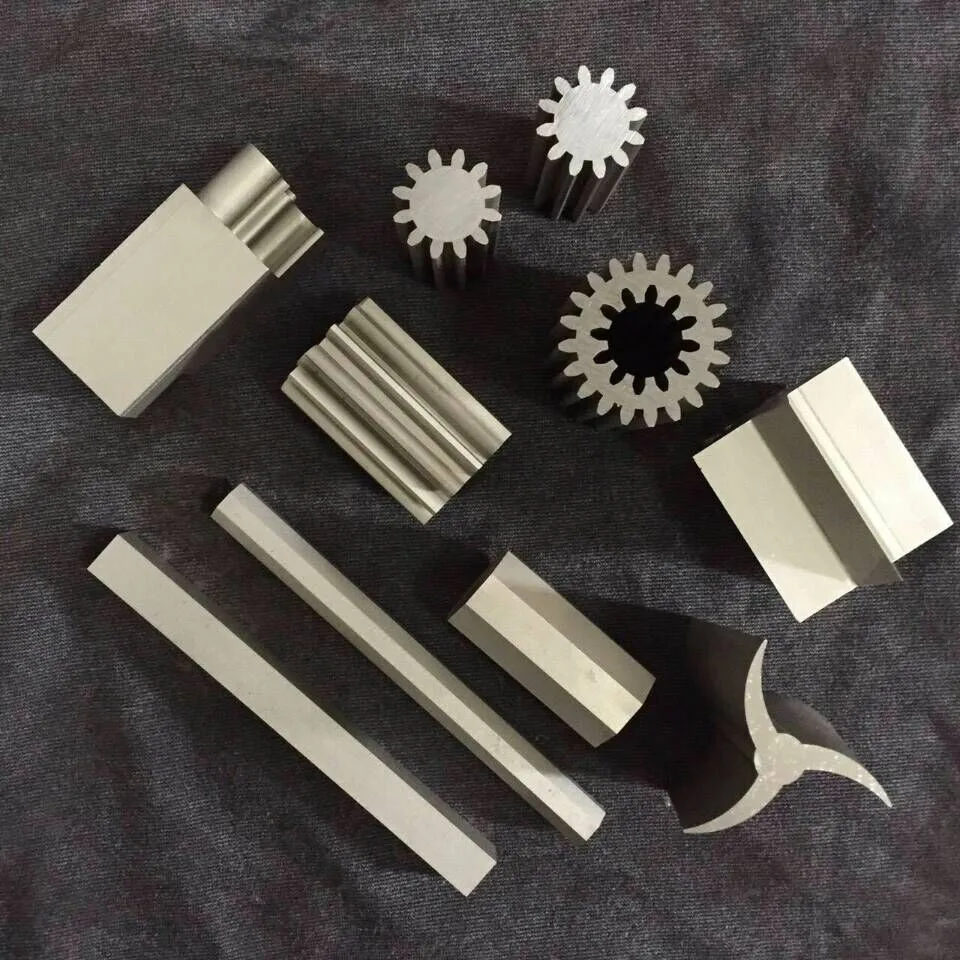

                                                                               Cutting samples

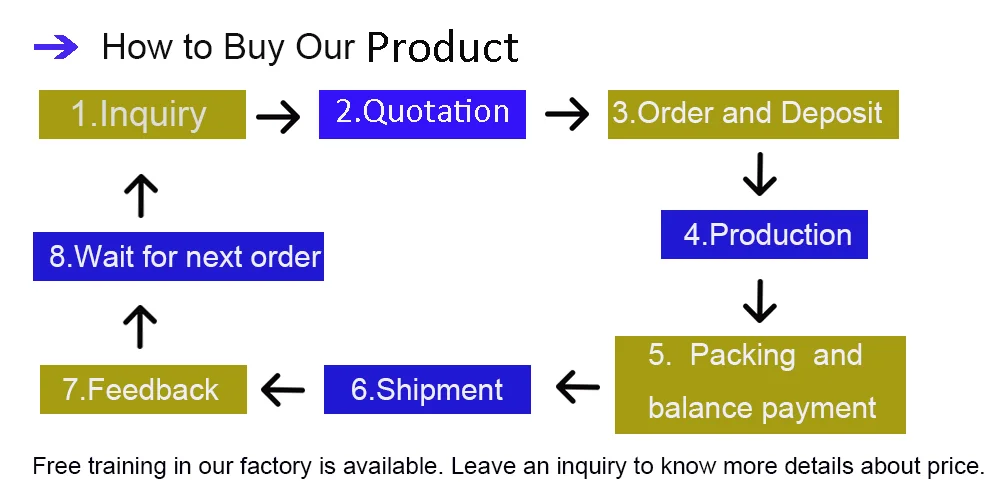

                                                                              How to buy our product

Packing&Delivery

Packing Details : To be packed in wooden cases,suitable for export.
Delivery Details : 25~35 days after receipt of deposit
